The engineering trick that keeps Spaceship Earth's sphere from raining on guests

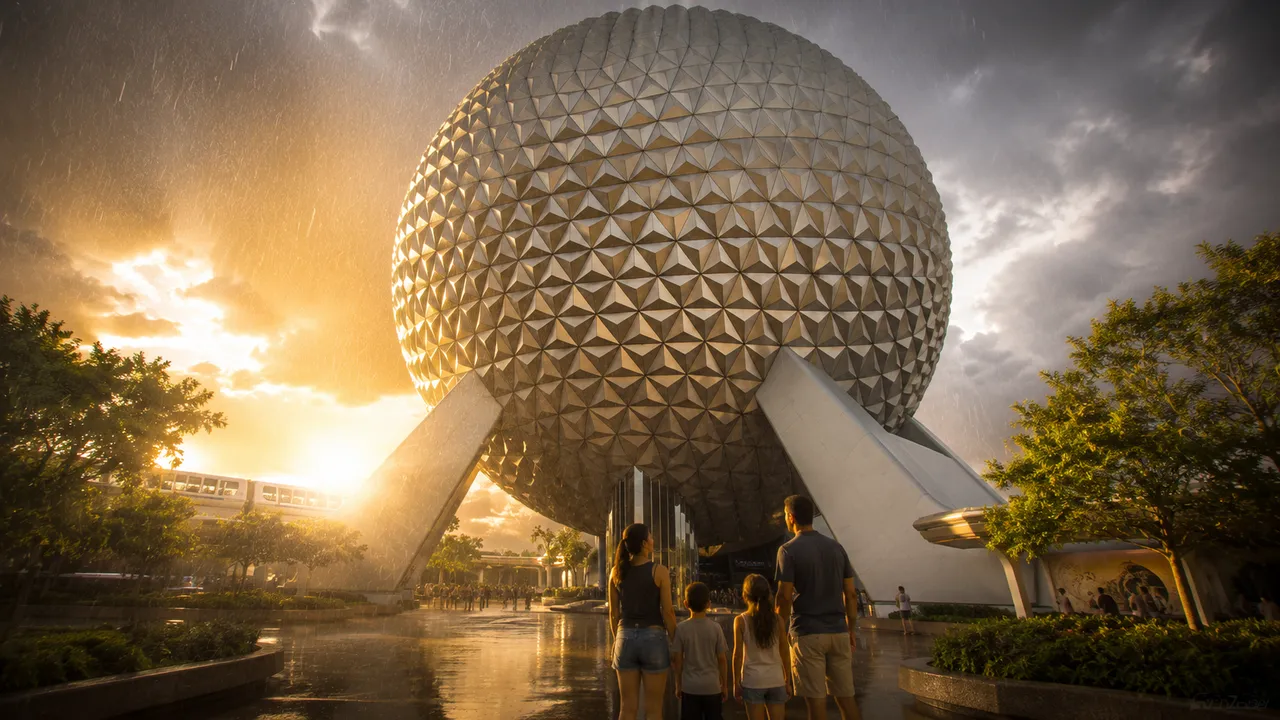

Spaceship Earth is the 165-foot geodesic sphere that's been EPCOT's visual signature since the park opened — and standing underneath it during one of Florida's sudden afternoon downpours, you'd expect to get soaked. You don't, and that's by careful design, not luck.

A sphere built to survive Florida rain

The structure is a steel frame, externally braced by six support columns with a central internal tower. Engineering firm Simpson Gumpertz & Heger designed it as the first large-scale complete geodesic sphere of its kind. The outer shell is made of 954 aluminum panels, broken up into 11,324 smaller triangular facets across their surface, covering about 150,000 square feet in total. It took roughly 26 months to build, starting in 1979 and finishing in 1982.

Where the rain actually goes

The panels aren't sealed the way you might expect. Small gaps between them intentionally let rainwater in — but only into a second, inner layer built specifically to catch it. Underneath the visible aluminum skin sits a rubberized inner layer that collects that water and channels it into a gutter system built into the structure itself, which then drains the water down and out into the World Showcase Lagoon nearby. Guests standing at the base see a smooth aluminum sphere; they never see the water actively flowing to the ground on the inside of that outer skin, because it never reaches the outside at all.

Why this mattered more here than almost anywhere else Disney builds

Central Florida's summer storms are frequent, sudden, and heavy — exactly the conditions that make an ordinary sealed dome risky, since any failure point in a fully sealed shell becomes a leak with nowhere planned for the water to go. Building the drainage in on purpose, rather than trying to keep water out entirely, meant the sphere could survive decades of exactly the rainfall pattern it was always going to face.

Final thought

The next time a storm rolls through EPCOT while you're near Spaceship Earth, watch how little changes at ground level. That's not the rain missing the building — it's roughly 150,000 square feet of aluminum quietly doing its job exactly as designed more than 40 years ago.
